WG 0010 - Striegel 300 cm 3D 모델

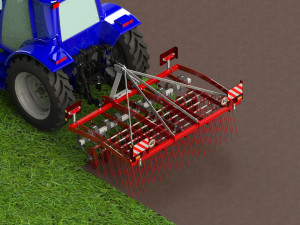

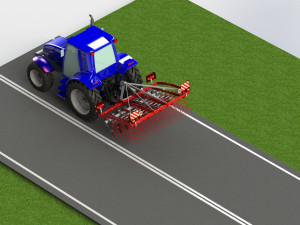

Mounted straw harrow for crop residue management and soil cultivation

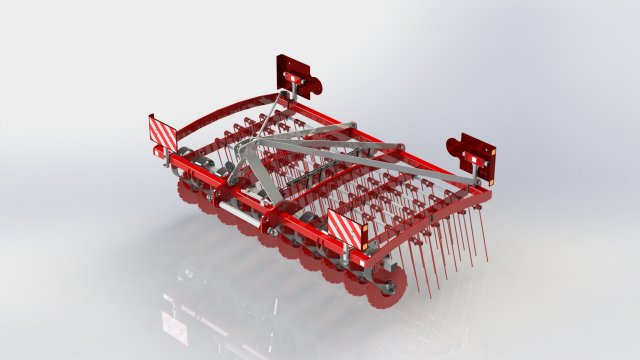

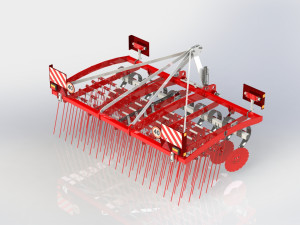

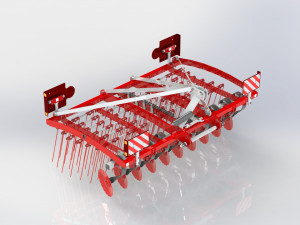

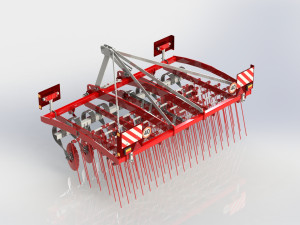

This is full solidworks model.
Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement

both single and serial production!
This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015.
Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in

*.pdf; programs for plasma (laser) saved in the format: *.DXF)

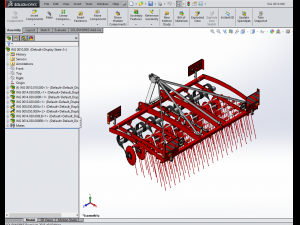

Modeled in SolidWorks 2015. The model contains the most popular formats:
SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE)
IGES: *.iges *.igs
STEP: *.step *.stp
Stereolithography: *.stl

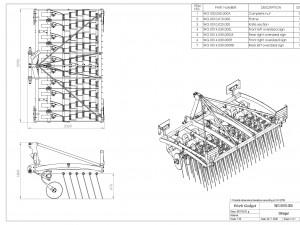

All CAD Drawings are saved in format *.PDF
Programs for plasma (laser) saved in the format: *.DXF
