Parametric Spur Gear - Customizable Dimensions for Engineering and Design 3D 프린트 모델

This is a high-quality, parametric 3D model of a spur gear, designed for engineers, designers, and hobbyists. This model provides exceptional flexibility and customization, allowing you to easily adjust key parameters to meet your specific needs.

Key Features:

• Fully Parametric:

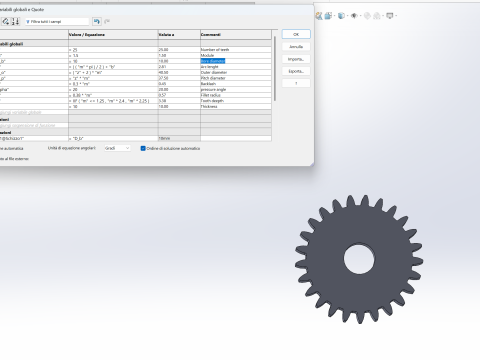

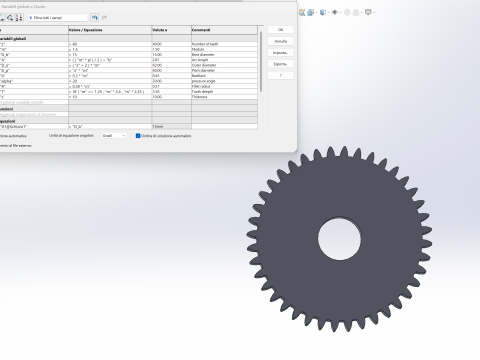

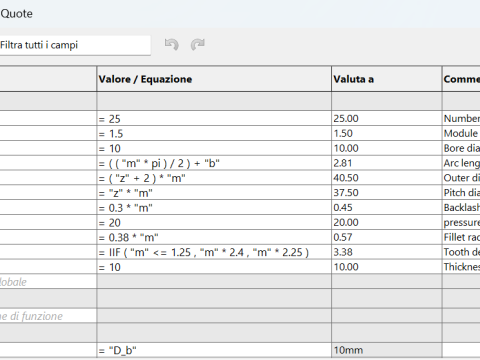

  • Easily modify dimensions such as number of teeth, module, pressure angle, bore diameter, and thickness using the included SolidWorks (.SLDPRT) file.
  • This parametric design allows for rapid prototyping and design iterations.
• High-Quality Modeling:
  • Accurate and precise 3D modeling ensures smooth operation and reliable performance.
  • The model is designed to meet industry standards and best practices.
• Multiple File Formats:
  • Includes the native SolidWorks file (.SLDPRT) for full parametric control.
  • Also includes a .STEP file, for universal compatability.
  • Also includes a .STL file, for 3D Printing.
• Detailed Documentation:
  • Comprehensive documentation is provided, including dimensions, specifications, and instructions for parameter modification.

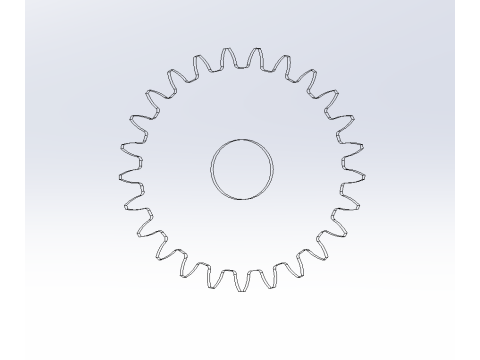

  • Screen captures of wireframes are also included.
• Versatile Applications:
  • Suitable for a wide range of engineering and design projects, including mechanical assemblies, robotics, and educational purposes.

Technical Specifications:

• Gear Type: Spur
• Material:
• Units: mm
• Available File Formats: .SLDPRT, .STEP, .STL

Ideal for:

• Engineers and designers seeking customizable gear solutions.
• Hobbyists and makers working on mechanical projects.
• Educators teaching mechanical design and engineering principles.

Note:

• SolidWorks software is required to fully utilize the parametric capabilities of the .SLDPRT file.
• The .STEP and .STL files are static geometries.

Enhance your engineering projects with this versatile and customizable parametric spur gear 3D model!
