Mold for diecast military tire 5 Scale 1 to 10 and 1 to 14 and 1 to 25 3D 프린트 모델

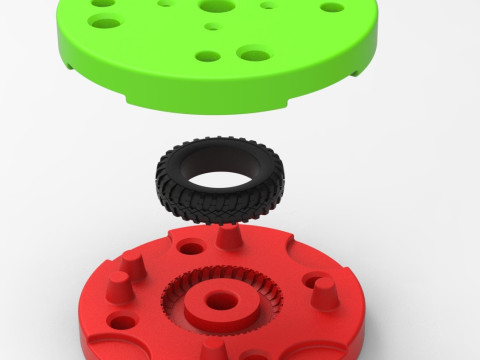

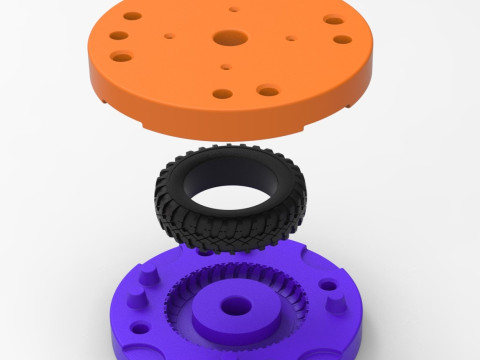

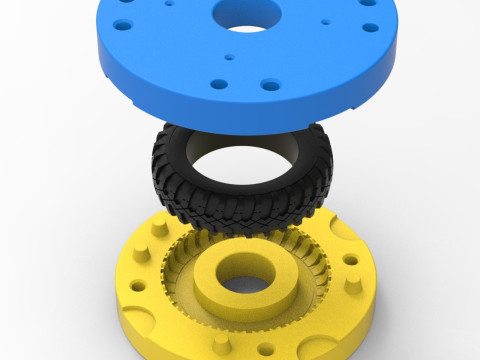

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

- diameter – 115 mm

- height – 30.5 mm

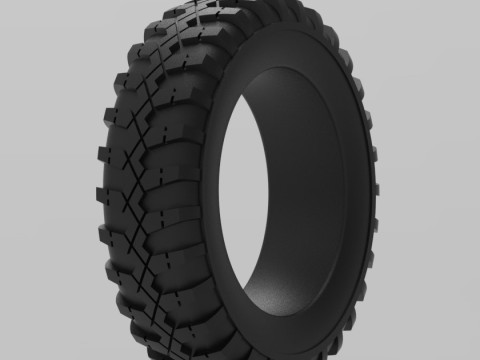

Tire dimensions 1:10:

-         outer diameter – 75 mm

-         overall width – 20.5 mm

-         inner diameter – 46 mm

Mold dimensions 1:14:

- diameter – 93.5 mm

- height – 24.5 mm

Tire dimensions 1:14:

-         outer diameter – 53.5 mm

-         overall width – 14.5 mm

-         inner diameter – 33 mm

Mold dimensions 1:25:

- diameter – 70 mm

- height – 17.5 mm

Tire dimensions 1:25:

-         outer diameter – 30 mm

-         overall width – 7.5 mm

-         inner diameter – 17.4 mm

If you want a different wheel size, simply scale the mold.

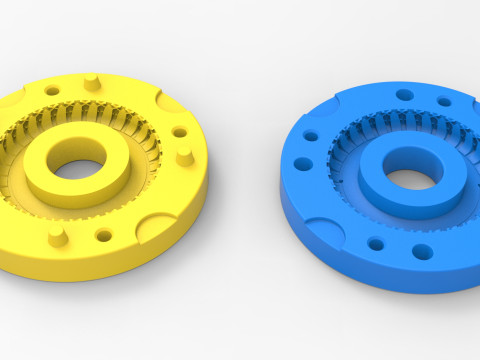

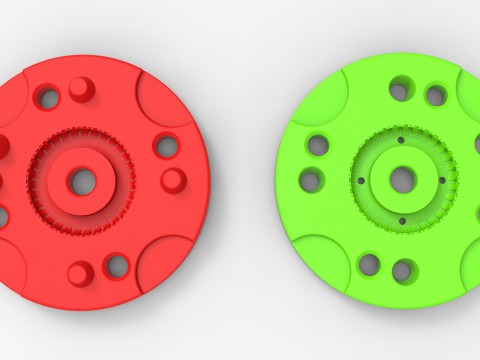

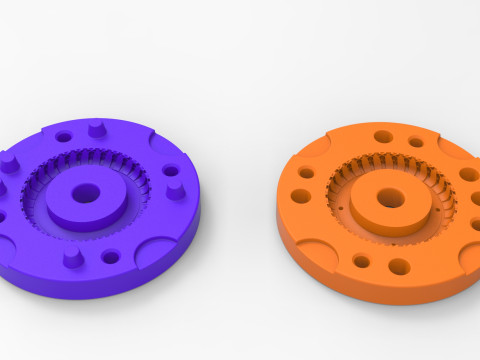

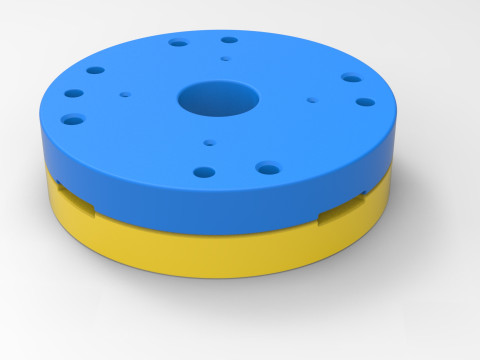

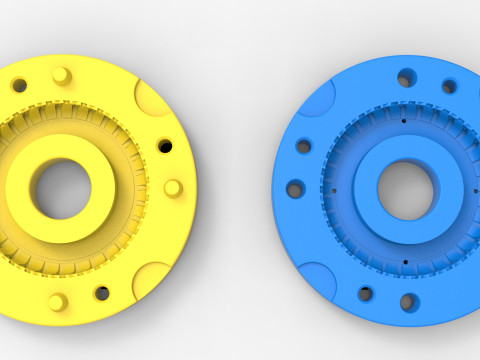

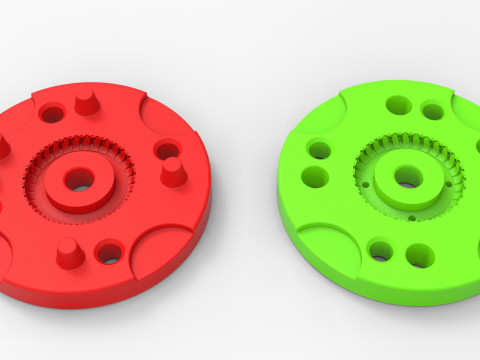

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.

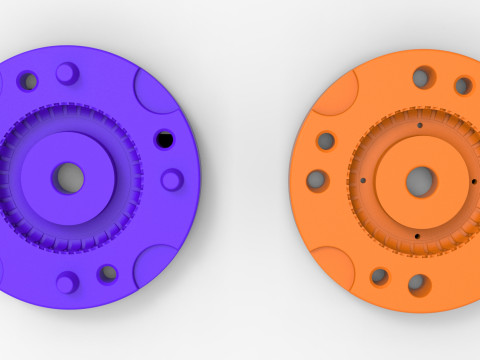

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

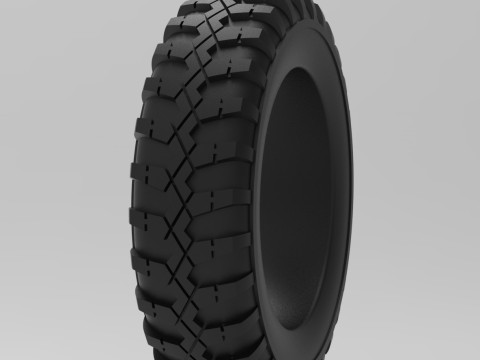

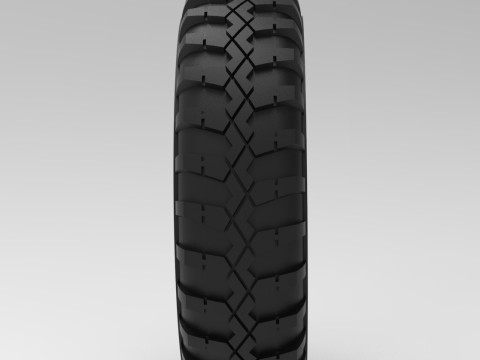

Note! Only the mold! This is not a tire!
