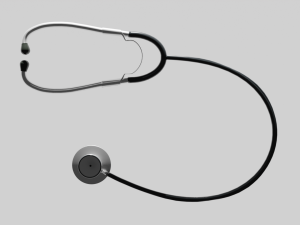

medical stethoscope rigged 3D 모델

medical stethoscope rigged

important notes!: the fbx format has the same rigging, but the inverse kinematics and the armature constraints are not applicable for the fbx file. each file contains a rigged model as well as a non-rigged one where each part is separate.

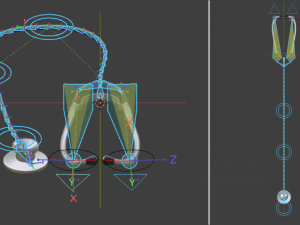

rigging: the rig has 5 ik (inverse kinematics) controllers. left and right ear tips ik controllers that control their position with limits applied & 3 tube and chest piece controllers that control the _*position and rotation *_of the tube rig. the tube ik controllers have no limit constraints to allow a wide range of movement and rotation, but rotating the ik to very acute angles may result in unnatural bends in the 3d model. all the preview renders are made using this rig in just a few minutes. each bone in the rig is named logically and the weight paint is adjusted manually for optimal results.

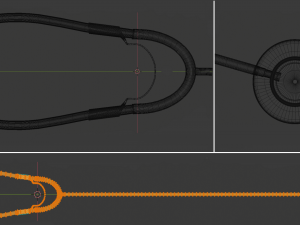

specifications for a single full model #vertecies count 33.542 . edges count 66,768 . faces count 33,237. the stethoscope was created with respect to the real proportions and curves. the quality and details were prioritized over the poly count.

there is a low poly version with the same rigging that you can find here: https://3dexport.com/3dmodel-medical-stethoscope-rigged-lowpoly-version-384537.htm 프린트 준비: 아니오
