construction drawing of 211 single family villa in two storey villa 3D 모델

brief introduction ([beijing] construction drawing of a two storey small single family villa (with renderings))

key words: villa



engineering design time: march 23, 2001

drawing depth: construction drawing

construction area: 474.986 square meters

building height: 12.554m

building floors: 3

renderings: yes

engineering design time: march 23, 2001

drawing depth: construction drawing

construction area: 474.986 square meters

building floors: 2

renderings: yes



site: the project is located in chaoyang district, beijing

the total construction area is 474.986 square meters, including:

basement building area: 159.686 square meters;

floor area of the first floor: 159.686 square meters;

the second floor building area is 159.471 square meters;

the structural form is: brick concrete structure

seismic design crack: 8 degrees. secondary durability.

fire resistance rating: grade ii.

the number of layers is: three

roof form: sloping roof

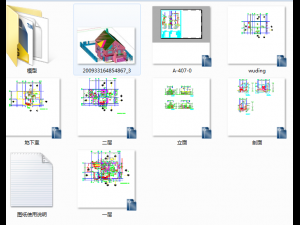

this set of drawings includes scheme model, building plan of each floor, roof plan, elevation, section, toilet detail, staircase detail, wall detail, cornice method, etc,

design functions include: suite, bathroom, family hall, balcony 프린트 준비: 아니오
