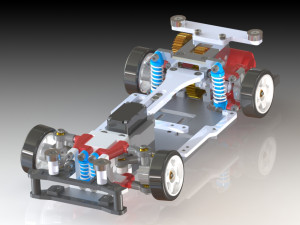

1-24 RWD drift chassis kit
3D 프린트 모델

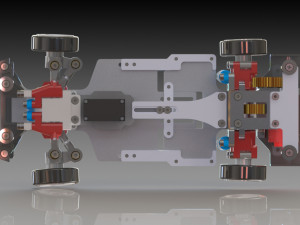

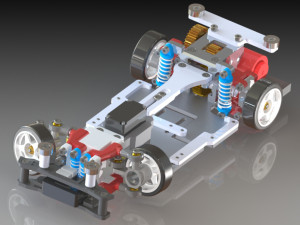

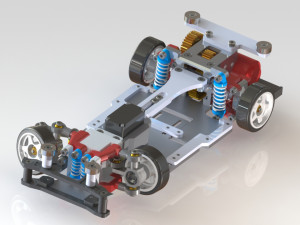

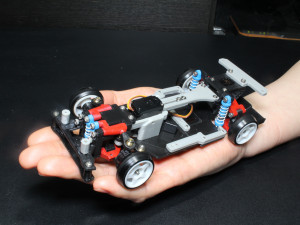

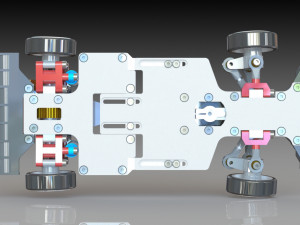

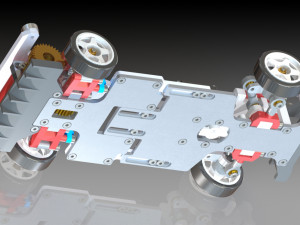

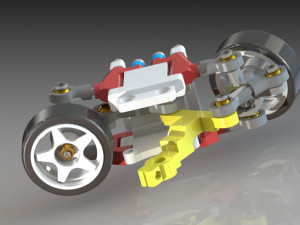

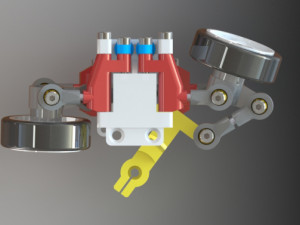

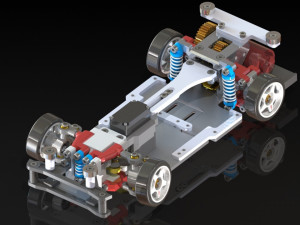

d printed RWD drift chassis kit for 1/24~1/25 plastic model car.
Please refer this video for assembly : https://www.youtube.com/watch?v=PzG2QyEFwxw

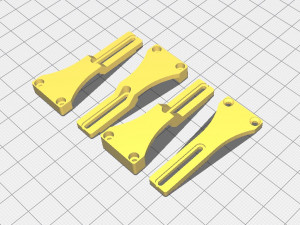

Because it is wheelbase adjustable chassis (98~114mm), it can be applied to bodies of various sizes.

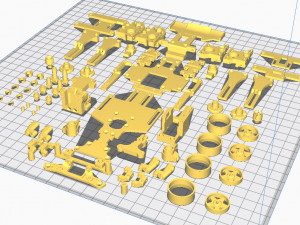

I maximized the advantages of 3D printing by designing various optional parts that can respond to variety type of 1/24 bodies.
Sliding is stable because it is designed with a geometric structure that makes it easy to drift.
The steering angle is large, so even if I make a mistake, the car doesn't seem to spin right away.
With this kit, you can make 1/24 high-performance drift car as much as you want.

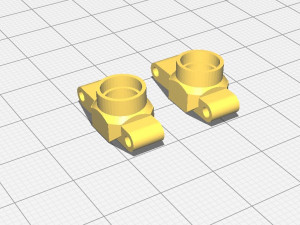

New update : Short wheelbase parts, reinforced rear hubs.
https://www.youtube.com/watch?v=vwSTetYdpH8

[Necessary parts]

Diameter 2mm Shaft : 9mm-2pcs, 14mm-4pcs, 20mm-1pc, 30mm-1pc

M2 countersunk bolt : 5mm-3pcs, 6mm-40pcs, 10mm-12pcs, 20mm-1pc

M2 socket head bolt : 6mm-20pcs, 10mm-2pcs, 15mm-6pcs, 24mm-2pcs

M2 nut (3.9mm wide, 1.5mm thick)-35pcs

M2 ultra thin flat wafer head bolt : 4mm-8pcs, 6.2mm-2pcs, 7.1mm-2pcs
https://www.**********.com/item/1005001596813595.html?spm=a2g0o.9042311.0.0.20f14c4dZna5kg

Inner 6mm, outer 10mm, thickness 3.0mm bearing-2pcs
Inner 2mm, outer 5mm, thickness 2.5mm bearing-2pcs
https://www.**********.com/item/33006120960.html?spm=a2g0o.9042311.0.0.20f14c4dZna5kg

Inner 3mm, outer7mm, thickness 2.0mm bearing-8pcs
https://www.**********.com/item/33006120960.html?spm=a2g0o.9042311.0.0.20f14c4dZna5kg


M2 ball end(001 M2)-8pcs
https://www.**********.com/item/32620209760.html?spm=a2g0o.9042311.0.0.27424c4dxxyEJD


0.4mm wire, OD 6mm, length 20mm spring-2pcs
0.4mm wire, OD 5mm, length 10mm spring-2pcs
https://www.**********.com/item/1005002738819545.html?spm=a2g0o.9042311.0.0.20f14c4dZna5kg

0.5 module 32t spur gear-2pcs
https://www.**********.com/item/33014557525.html?spm=a2g0o.9042311.0.0.27424c4d1kHKjq

0.5 module 18t pinion gear-1pcs
0.5 module 15t pinion gear-1pcs
0.5 module 10t pinion gear-1pcs
https://www.**********.com/item/33015356835.html?spm=a2g0o.9042311.0.0.27424c4d1kHKjq


drift tire-1set(4pcs)
https://ko.**********.com/item/1005003397630960.html?spm=a2g0o.productlist.0.0.585e7d334anyLR&algo_pvid=aa2894be-1765-4f8f-8b2b-f6c46e40327e&algo_exp_id=aa2894be-1765-4f8f-8b2b-f6c46e40327e-2&pdp_ext_f=%7B%22sku_id%22%3A%2212000025600513039%22%7D&pdp_pi=-1%3B3.64%3B-1%3B49%40salePrice%3BUSD%3Bsearch-mainSearch

[Necessary tools]

M2 tap tool
M2 Hex wrench
Drill - 1.7mm, 1.9mm, 2.0mm, 2.1mm
Plus driver
File, knife, saw....etc.

[Necessary RC parts]
Transmitter, receiver
Li-po(2s 300~500mah)battery
Gyro 프린트 준비: 아니오
